Pong ~Part 6~ Scoring Points

Welcome back to the AS3 Game Tuts pong tutorial series. So far in this series we’ve created a working pong game complete with a ball and two paddles. In this tutorial we are going to add a scoring system to the game.

As always, if you haven’t read the rest of the series yet I highly recommend starting with the beginning.

Part 1: Setting up the Project

Part 2: Programming the Ball

Part 3: The Player’s Paddle

Part 4: The CPU’s Paddle

Part 5: Collisions

Keeping track of score

Pong traditionally has 2 score values: the player’s score and the computer’s score. This is actually super-simple for us to create! Basically a score value is just a variable that holds a number. At the start of the game we set the variable to 0, and every time the ball hits the left or right walls we add 1 to the score of whoever scored the point.

First off, let’s create the playerScore and cpuScore variables, which will be integers. Add this right below the other variable declarations.

var playerScore:int = 0;
var cpuScore:int = 0;

That was easy enough. Now let’s revisit some old code from Part 2 of this series (when we programmed the ball bouncing off the walls). Logically, whenever the ball hits the right edge of the screen the player will score 1 point. And whenever the ball hits the left edge of the screen the computer scores a point.

Modify this code from the main game loop…

if(ball.x = stage.stageWidth-ball.width/2){
	ball.x = stage.stageWidth-ball.width/2;
	ballSpeedX *= -1;
}

…so that it looks like this:

if(ball.x = stage.stageWidth-ball.width/2){
	ball.x = stage.stageWidth-ball.width/2;
	ballSpeedX *= -1;
	playerScore++; //increase playerScore by 1
}

Also, modify your other code by adding cpuScore++, in the same way you added playerScore++.

if(ball.x <= ball.width/2){
     ball.x = ball.width/2;
     ballSpeedX *= -1;
     cpuScore++; //increase cpuScore by 1
}

As you can see, in order for the player to score a point we type in “playerScore ++”, and we type in “cpuScore ++” when the computer scores a point. Pretty self explanatory.

Creating the text fields

So if you test the game now you’ll notice that although we did add the code for the scoring system, nothing has visually changed. We still need to add a display for the scores, so the you can visibly see how many points each side has. In order to do this we need to first move back over to the stage of Flash and build a text game object for each score.

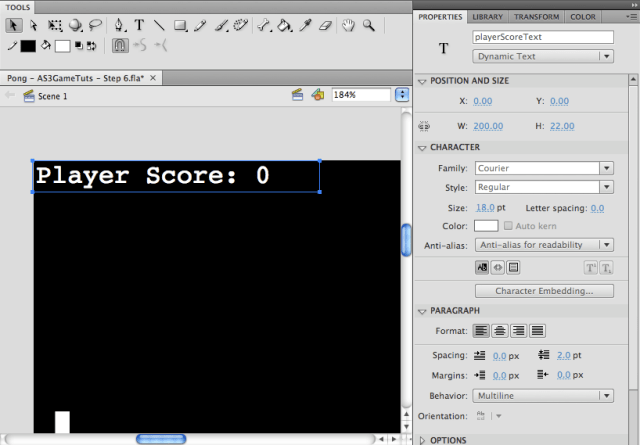

Use the Text Tool (T) to create a text field on the screen. In it, type: Player Score: 0 (as shown above). Select it, and in the top of the properties panel switch the text field from Static Text to Dynamic Text. This changes it from just ordinary text into a game object which we can modify using code. It also lets us give the text an instance name, so name yours “playerScoreText”.

The rest of the formatting doesn’t really matter, except to make it look differently. Feel free to either use the formatting shown in the image above, or to format the text field on your own. Personally I set the color to white, used a size 18 Courier font, set the position to (0,0) and set the width to 200 so that the text field has extra space in case the score takes up multiple digits.

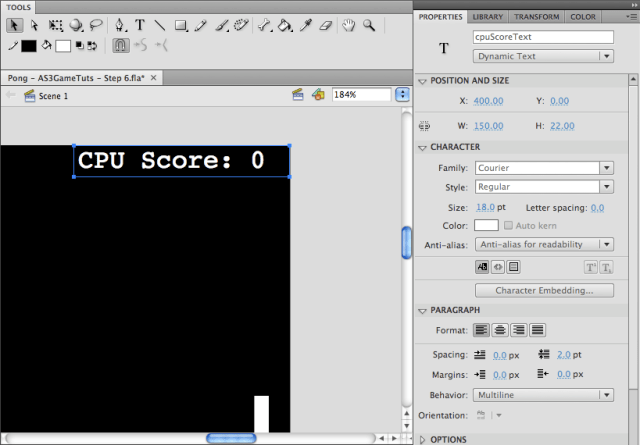

Now we must do the same for the cpuScore.

Basically just repeat what we did for the playerScoreText: Create a text field, type in: CPU Score: 0, set it to Dynamic Text, give it the instance name cpuScoreText, and format it like you did the last one. I positioned my cpuScoreText at (400,0) and gave it a width of 150.

Putting it all together

So now that the text fields are all set up we can return to the code and put everything together.

Create a new function in your code window called updateTextFields:

function updateTextFields():void
{
	playerScoreText.text = ("Player Score: " + playerScore);
	cpuScoreText.text = ("CPU Score: " + cpuScore);
}

Every time this function is called the we modify the text property of the playerScoreText and cpuScoreText. We set the text equal to the score name (in quotes) plus the score variable (no quotes). This function is complete.

All we have to do to make this work is to call updateTextFields() anytime someone scores a point. So go back to the code in the game loop, and add those lines:

if(ball.x = stage.stageWidth-ball.width/2){
	ball.x = stage.stageWidth-ball.width/2;
	ballSpeedX *= -1;
	playerScore++; //increase playerScore by 1
	updateTextFields();
}

And now, ladies and gentlemen, the scoring system is done!

Get your sourcecode hot off the press, HERE.

Please let me know what other features you would like to see implemented in this game in future tutorials. Would you like to add winning and losing? A title screen? Sound effects and music? More realistic physics and AI? Either leave a comment, or drop me an email me at: AS3GameTuts@Gmail.com.

Stay tuned for more Pong tutorials, as well as a new series on how to create an art-based platformer.

Subscribe to the AS3GameTuts RSS feed to stay up-to-date on the latest and greatest tutorials.
