Sidescrolling Platformer – Part 13 – Enemy Interactivity

As I announced in the last post, I am extremely busy right now. Luckily for you, a member of the community has already stepped up and written a Part 13 for this side scrolling tutorial! In this tutorial, you’ll learn to create “bumper” objects for your enemies to interact with, which will let them patrol back and forth. You’ll also look for collisions between the player and the enemies, so you can take damage in your game. Cool!

I’ll hand it over now to the newest guest writer around here, Ed Nordmeyer (thanks, Ed!)

Ben covered creating enemies and making them disappear when they’re shot in lesson 12, so in lucky lesson 13, in this guest tutorial, I’ve picked up where the last lesson left off in the side scrolling platform game.

This will cover making the enemies move, how to block them in so they’ll patrol in a simple side-to-side motion, and have them interact with your player if they touch you. Following in Ben’s footsteps, if I had to choose between making the code readable or making the code ultra efficient and take up the least amount of lines, I tried to make the code as easy as possible to understand.

Creating the Bumper class

If you’ve followed the tutorial steps so far, you’ll find that creating the bumper class is very, very similar to the other classes made so far. For the artwork, I just made a square that was about a 25×25 pixels in size. I created this block on the background layer outside of what the player screen shows when you’re running the game. We’ll go back and made the blocks transparent later, but for now I’d recommend making them easy to see to help placing them on the screen from our code.

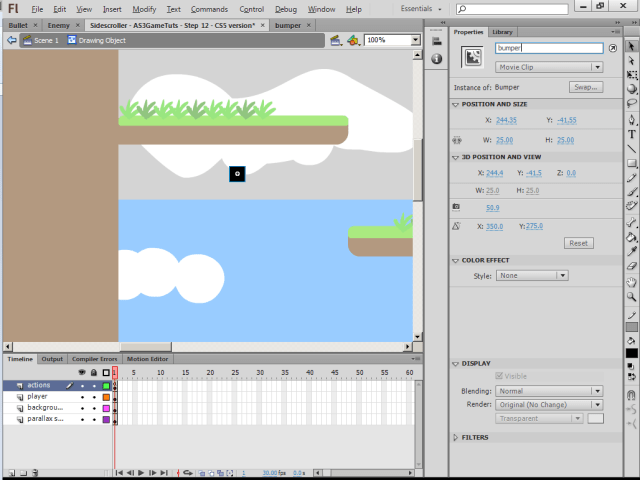

Create a bumper rectangle in Flash Professional cs6

Once you’ve created the bumper square, select the bumper, and convert it to a Movie Clip symbol.  As mentioned in the last lesson, go to the Advanced section to link this object to the “Bumper” class. If you need a refresher on what all the settings are for, refer to Part 10.

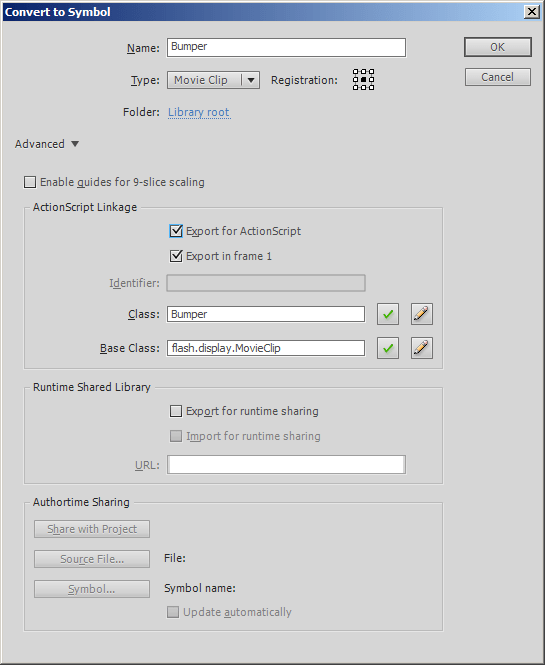

Creating a custom class for the enemy bumper

Create a “bumper” class named Bumper.as. The bumper code looks like this:

package {
    import flash.display.MovieClip;
    import flash.events.Event;
    public class Bumper extends MovieClip{

        public function Bumper(xLocation:int, yLocation:int) {
            // constructor code
            x = xLocation;
            y = yLocation;

            addEventListener(Event.ENTER_FRAME, bumperloop);
        }

        public function bumperloop(e:Event):void{
            //code here
        }
    }
}

Adding Bumpers to the Background with Code

We could add bumpers to the game by copy/pasting the block we created, but that means they’d stay in the same spot when the platforms changed when we moved to level two. To be able to make the bumpers work with the platforms, I added the bumpers to the level from the main program. The code is similar to the addEnemiestoLevel() code you’ve seen previously. I called this function addBumpersToLevel().This code is passed two variables, whihc tell the program where the 25×25 blocks will be added to the screen. You’ll want to make one bumper on the left and one on the right for each platform where the enemies are currently standing.

Up where the variables were declared, add an array for the bumpers. I placed mine right by where I added the enemy array, and it looks like this:

var bumperList:Array = new Array();

Right under the line “addEnemiesToLevel1():” from the main code page, add the following code to put two blocks next to the first enemy you encounter in this game. The co-ordinates are the X and Y points for where the bumpers should be placed. You can go back and add more later, but for right now I’m just going to corral the one enemy closest to where we start the game. (Yep, I’m from Texas, and we corral stuff ’round here.) Repeat this step for any  additional enemies you’ve added to the game.

function addBumpersToLevel1():void
{
    addBumper(500, -115);
    addBumper(740, -115);
}

In the main code page, by the addEnemies function, add this to finish calling the bumpers and adding them to an array. We’ll need the array later.

function addBumper(xLocation:int, yLocation:int):void
{
var bumper:Bumper = new Bumper(xLocation, yLocation);
back.addChild(bumper);
bumperList.push(bumper);
}

Changing the Enemy Class So They Move

So far, so good. We’ve got bumpers now, but without a moving enemy, they’re kinda useless. What we want to do is have the enemy move until it hits a bumper, then reverse direction. Reopen the enemy class (Enemy.as) and make the following modifications:

package {
    import flash.display.MovieClip;
    import flash.events.Event;public class Enemy extends MovieClip {

        private var xSpeedConst:int = 2;
        private var flip:int = 1;

        public function Enemy(xLocation:int, yLocation:int) {
            // constructor code
            x = xLocation;
            y = yLocation;
            addEventListener(Event.ENTER_FRAME, loop);
        }

        public function loop(e:Event):void {
            if ((flip%2) == 1){
                x += xSpeedConst;
            } else if((flip%2) == 0){
                x += (-xSpeedConst);
            }
        }

        public function removeSelf():void {
            trace("remove enemy");
            removeEventListener(Event.ENTER_FRAME, loop);
            this.parent.removeChild(this);
        }

        public function changeDirection():void{
            trace("x ="+x);
            flip++;
        }
    }
}

Many of you are going to be familiar with the “%” sign, or the modulus operator. For those that aren’t, it’s a mathematical function that means when you divide a number by something (in our case, two) does it divide cleanly or is there a remainder left over?

This code initially sets the variable flip to 1 and starts with the enemy moving to the right. Flip mod 2 gives you a remainder of one, it means flip is an odd number, so our speed is a positive number. Once we hit the bumper, we increment flip by 1 using flip++. Now flip is an even number (flip mod 2 has no remainder,) so change the xSpeedConst to a negative, which means our enemy will now move to the left. Hit the left side bumper, flip++ makes the number odd, and back to the right again.If you compile and test now, you’ll see the bumpers appear, the enemy starts to move… and moseys right through the bumper. So let’s fix that.

Did Someone Hit Your Bumper?

I was going to make a car insurance joke here, but decided against it. Instead, in the main code add this to detect if the enemies hit bumpers with the following code.

//corralling the bad guys with bumpers
if (enemyList.length > 0){ //enemies left in the enemyList?
    for (var k:int = 0; k < enemyList.length; k++){ // for each enemy in the enemyList
        if (bumperList.length > 0){
            for (var h:int = 0; h < bumperList.length; h++){ // for each bumper in the List
                if ( enemyList[k].hitTestObject(bumperList[h]) ){
                    // trace("hit bumper");
                    enemyList[k].changeDirection();
                }
            }
        }
    }
}

Did an Enemy Hit the Player?

Please note I added a commented line in here where you could add code to determine what happens to the player when they run into an enemy. If you’ve read the health bar tutorial, you could make your health go down 50%, or if you don’t believe in second chances, you could call a a gameOver() function that then takes you to a gotoAndStop(“gameover”) frame. Your choice, but that topic is worthy of another tutorial.

//player and enemy collisions
if (enemyList.length > 0){ //enemies left?
    for (var m:int = 0; m < enemyList.length; m++){ // for each enemy in the enemyList
        if ( enemyList[m].hitTestObject(player) ){
            trace("player collided with enemy");
            //code to damage player goes here
            enemyList[m].removeSelf();
        }
    }
}

Make the Bumpers Invisible

Last but not least, we don’t want the bumpers cluttering up the landscape. After you’ve added all of the bumpers you want to the screen to keep your enemies safely patrolling where they should stay, I went back to the addBumper code and changed the visibility to false after they’re created.

function addBumper(xLocation:int, yLocation:int):void
{
    var bumper:Bumper = new Bumper(xLocation, yLocation);
    back.addChild(bumper);
    bumper.visible = false;
    bumperList.push(bumper);
}

Okay, that’s it for this tutorial! We covered adding bumpers, making the enemies move, and how to check if the enemies either hit a bumper or hit you. As a shameless plug for my game that I made using Ben’s tutorial, please visit this and give me a 5 star rating, and I hope to be invited back as a guest speaker again soon!

http://www.kongregate.com/games/nordmed/zephyr-mail

Ed Nordmeyer



Source Files: https://www.box.com/s/d6oibaw63w12e2kvcmsx
