Sidescrolling Platformer ~Part 3~ The Player

In our last tutorial we programmed the background so that it scrolls when we control it with the arrow keys. But as cool as that is, it isn’t enough. Right now the player is nothing more than a a static object on the side of the stage. What we’re going to do in this tutorial is program the player to interact with the background.

Player Mechanics

What code do we add for the player? That’s a BIG question… the fate of our entire game pretty much depends upon how the player interacts with the environment. In order to stay organized, I’ll outline all the basic concepts the player should follow:

  • Smooth Movement: The player should accelerate smoothly upon pressing the arrow key, and glide to a stop due to friction when the arrow key is released.
  • Collisions: The player should not be able to walk through walls, fall through the ground, or jump through ceilings.
  • Gravity: The player should be pulled downwards unless he is standing on the ground.
  • Jumping: If the player is standing on the ground, he should be able to jump upwards.

Smooth Movement, and Fixing the Background

In order to make the player movement be smooth and efficient, we need to make a fix to some of the clumsy code from last tutorial, as well as add a few new features.

First, change the instance name of the background on the stage to just be “back“. It’s my fault that I named it background last tutorial, because there is already a property in actionscript 3 called “background”. This might cause problems or confusions in the code, so change the instance name to avoid any issues.

Also, give the player the instance name “player“. We will need to access this later.

Next, create two variables to keep track of the x and y positions of the background. Currently the background moves around, but we have no easy way to keep track of where it is (and where the player is relative to the background — which is very useful to know).


var scrollX:int = 0;
var scrollY:int = 0;

Next, rename the variables xScrollSpeed and yScrollSpeed to be xSpeed and ySpeed, respectively, and set them to equal zero. While our old variable names work for the simple demo we have running, a more advanced game will require more versatile variables.

They should look like this:


var ySpeed:int = 0;
var xSpeed:int = 0;

Finally create two new variables to hold constant values we will use in the loop function. Create a speedConstant of 5 which we will set the xSpeed and ySpeed variables to when the proper keys are pressed. And create a friction value of 0.95, which we will constantly multiply the player’s speed by to slow him down.


var speedConstant:int = 5;

var friction:Number = 0.95;

Now we can update the loop function. The old loop looked like this:


function loop(e:Event):void{

	if(leftPressed){
		background.x += xScrollSpeed;

	} else if(rightPressed){
		background.x -= xScrollSpeed;

	}

	if(upPressed){
		background.y += yScrollSpeed;

	} else if(downPressed){
		background.y -= yScrollSpeed;

	}
}

Here’s the new loop function in its entirety. I’ll explain afterwards.


function loop(e:Event):void{

	if(leftPressed){
		xSpeed -= speedConstant;

	} else if(rightPressed){
		xSpeed += speedConstant;

	}

	if(upPressed){
		ySpeed -= speedConstant;

	} else if(downPressed){
		ySpeed += speedConstant;

	}

	xSpeed *= friction;
	ySpeed *= friction;

	scrollX -= xSpeed;
	scrollY -= ySpeed;

	back.x = scrollX;
	back.y = scrollY;
}

Here’s what the loop function does, starting from the top. Whenever the left or right keys are pressed, the player’s xSpeed is increased in that direction by the speedConstant (which is 5). The same thing happens for the ySpeed if the up or down arrows are pressed. Then the xSpeed and ySpeed are immediately decreased by multiplying them by friction (which is 0.95). This will slowly bring the player to a halt if no keys are pressed, and it will also cause the player to have a maximum speed even if the keys are still pressed. Next, the scrollX and scrollY variables are negatively updated by the player’s speed variables, and the background’s position is set to these final variables.

This code makes the scrolling of the background more smooth, more efficient, and more versatile.

On top of all this programming, I also slightly updated the graphics of my background. The configuration is the same, but I scaled everything up a little bit to make it larger, and I cleaned up the lines. I also repositioned the player to about the center of the stage.

Run your game and be amazed by the silky-smoothness of your movement system….

…Or just click on the preview below and use the arrow keys to check out the new improvements!

Collisions

So our movement is all polished up… but we can still run through walls. Something tells me we need to add collision detection.

This is the trickiest topic we have to cover today, and let me explain why. In a traditional tile-based platformer, where everything is laid out in nice grids, we can use code to calculate whether or not the player is colliding with floors, walls, etc. But we are not making a tile-based game — they are more complicated to set up, and your art and background environment is generally limited to a specific style. However, in exchange for the freedom that art-based platformers enjoy, we lose out on the perfectly calculated solution to collisions.

Our best choice at this point is to settle for a less-than-perfect collisions system, and try to improve it as we go along. Time to begin.

First things first, create 4 new variables at the top of your code so we can keep track of whether or not the player is colliding with the background on each side. For example, we will check the value of downBumping to check if the player is on the floor, and rightBumping to check if the right side of the player is touching a wall.


var leftBumping:Boolean = false;
var rightBumping:Boolean = false;
var upBumping:Boolean = false;
var downBumping:Boolean = false;

Now that we have these variables, we need to figure out how to check if the player is indeed colliding with the background on that side. To do so, we will use the built-in flash method: hitTestPoint.

Hit-testing inside of flash is a pretty unglamorous topic, due to the fact that there are two types of hit-testing, and neither work the way you wish they did. The first is hitTestObject (which we are NOT using). To use hitTestObject between the background and the player, we would simply say:

if( background.hitTestObject(player) ){
//do whatever we need
}

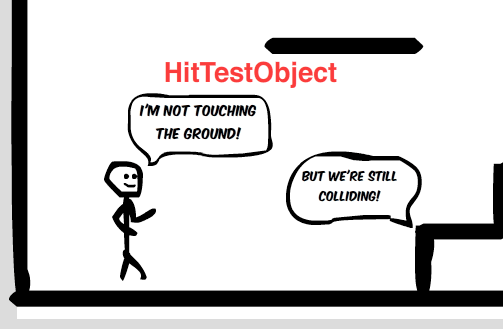

Sounds good, right? Wrong. The problem with hitTestObject is that is checks for a collision between the bounding boxes of each object, not each object itself. This means that if either of the objects is within a rectangular area that bounds the other object, the hit test will return true, even if there is nothing drawn at that specific point. In our game, even if the player isn’t touching any platforms, as long as he is within the overall perimeter of the background object, the game will think they are colliding.

This won't work.

The second method built into flash is hitTestPoint. This is similar to hitTestObject, but differs on a couple big issues. The first is that it checks for collisions between one object, and a specific point on the screen, NOT another entire object. This seems strange and unappealing, but there is a benefit: we get to test the actual object, NOT its bounding box. If you are confused, don’t worry — here’s an example. To use hitTestObject between the background and the player, we would say:

if( background.hitTestPoint(player.x, player.y, true) ){
//do whatever we need
}

The first parameter — player.x — is the x-coordinate to check, and the second parameter — player.y – is the y-coordinate to check. The final parameter — true – is called the “shapeFlag“. This fancy name simply lets us specify if we want to hitTest against the entire bounding box of the background (false), or a pixel-perfect collision (true) between the background and the coordinate point of the player. We obviously want to pick true, so we don’t end up with the same problem as with hitTestObject.

This is all fine and dandy, but remember that this still only checks one single point of the player. How could this possibly work? The answer is that it doesn’t work perfectly, but we can achieve a pretty good effect by using a combination of hitTestPoints which check one point on each side of the player. This image should clear things up.

This WILL work.

The green dots represent a collision between the background and the point located at the corresponding coordinates. A red dot means there is no collision detected at that point. While this isn’t a perfect solution, we will be able to know whether the player is bumping against the background on each side. From there, we can make sure that the player stops moving in that direction so he doesn’t move past a wall. (P.S. No need to draw those colorful dots — they’re just a visualization.)

Wow. That was a lot of theory. It’s code time.

Underneath the Boolean variables you created earlier this tutorial, add four new variables to keep track of the collision points.

var leftBumpPoint:Point = new Point(-30, -55);
var rightBumpPoint:Point = new Point(30, -55);
var upBumpPoint:Point = new Point(0, -120);
var downBumpPoint:Point = new Point(0, 0);

You probably noticed that those aren’t our standard integer or boolean variables. They are Points. Points are defined with two values, set up like a standard coordinate on a graph. The first is the x-value, and the second is its y-value. If you wanted to access the x and y values of leftBumpPoint, you would use leftBumpPoint.x and leftBumpPoint.y.

Now that we’ve set the coordinates which we need to check, lets edit the loop function and tie everything together. At the very top of the loop function, before any of the movement code, add the following 4 chunks of hit-testing goodness:

	if(back.hitTestPoint(player.x + leftBumpPoint.x, player.y + leftBumpPoint.y, true)){
		trace("leftBumping");
		leftBumping = true;
	} else {
		leftBumping = false;
	}

	if(back.hitTestPoint(player.x + rightBumpPoint.x, player.y + rightBumpPoint.y, true)){
		trace("rightBumping");
		rightBumping = true;
	} else {
		rightBumping = false;
	}

	if(back.hitTestPoint(player.x + upBumpPoint.x, player.y + upBumpPoint.y, true)){
		trace("upBumping");
		upBumping = true;
	} else {
		upBumping = false;
	}

	if(back.hitTestPoint(player.x + downBumpPoint.x, player.y + downBumpPoint.y, true)){
		trace("downBumping");
		downBumping = true;
	} else {
		downBumping = false;
	}

If you run your program now and move through a platform you will see the trace statements pop up in your output panel confirming that the collisions are working!

There is one last step we need to add in order to make everything work. Right now we correctly set the “bumping” variables to true or false whenever the player collides with the background. All that’s left to do is to make the player react to these variable. We will program this by changing the player’s velocity in whatever direction the collision is sensed. Instead of setting the velocity to 0, for the moment we are going to make the player bounce off the walls he collides with, and slow down.

Add the following code to the game loop. Be sure to position it correctly, because the order that the code gets executed in the loop will affect how the player behaves. Place these directly before the line where we multiply the speed by friction. This is after we add/subtract the speedConstant depending on the arrow keys that are pressed.


	if(leftBumping){
		if(xSpeed < 0){
			xSpeed *= -0.5;
		}
	}

	if(rightBumping){
		if(xSpeed > 0){
			xSpeed *= -0.5;
		}
	}

	if(upBumping){
		if(ySpeed < 0){
			ySpeed *= -0.5;
		}
	}

	if(downBumping){
		if(ySpeed > 0){
			ySpeed *= -0.5;
		}
	}

If you’ve typed everything correctly so far, and you run your program, the player should stop and bounce off of walls instead of running through them!

Try it out here:

That’s a big improvement over our last demo. ‘Ye olde scrolling background is finally beginning to act like a sidescrolling game. However, there is still a long, long, LONG way to go before we can call this a complete platformer.

If you tested the new demo for more than a couple seconds, you probably realize that while our current hit-testing does an OK job, it has a few major problems.

First and foremost, you are only blocked if a single point on each side of the player happens to bump into the background — this is a problem, for example, because you can have the left edge of the player’s body fall through the floor as long as the bottom-center point isn’t touching the floor, or you can easily run the player’s head sideways through a platform because the collision is checked farther down.

The second issue is that if you speed up enough, sometimes you are able to slip through the background! This is because if the player’s speed is greater than the thickness of a platform, the hit-test point might skip over the entire platform between two frames. This would mean the game was never notified that the player should stop moving in that direction.

There are a few different solutions to improve our collision detection, but we will save those for another day. I don’t know about you, but personally after 1500 words of collision-craziness, I need a break.

On that note, I’m going to bring this post to a close. There’s so much more I want to discuss, but this tutorial part is already my longest yet, by far. The next part will cover the 2 sections of player interaction we outlined but didn’t get to: gravity and jumping.

Here is the customary source code.

You can subscribe HERE to be notified about any new posts. If you have any questions, or requests for game features or future tutorials, leave me a comment below. Thanks for your continued support!

Up next: Part 4: Gravity and Jumping
